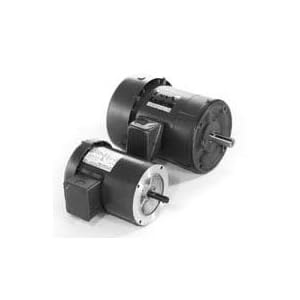

Marathon C1238, 184TTFW8617, 7 1/2 Hp, 208-230/460,3 PH,184TC FR,3600 Rpm Motor: Industrial & Scientific

Industrial & Scientific Access the most advanced RSS tools and use them to your advantage.

Marathon C1238, 184TTFW8617, 7 1/2 Hp, 208-230/460,3 PH,184TC FR,3600 Rpm Motor Dec 10th 2012, 09:01 Category: Industrial & Scientific Vendor: Shipping Weight: 85 pounds (View shipping rates and policies) ASIN: B004RC14V6 Item model number: C1238 Average Customer Review Product Description : (C1238) 7 1/2 Hp, 208-230/460, 3 PH., 184TC FR., 3600 Rpm, TEFC, C-Face Footless, General Purpose, Standard Efficiency. ****Motor Nameplate Shows 60 and 50 Hertz Information****60 Hertz HP 7 1/2 Voltage 208-230/460 kW 5.60 FL Amps 19.9-18.4/9.2 RPM 3600 FL Eff 86.5 % SF 1.0 50 Hertz HP 5 Voltage 190/380 kW 3.70 FL Amps 14.8/7.4 RPM 3000 FL Eff 87.5 % SF 1.0 Phase 3 Insulation Class F Frame 184TC Duty CONTINUOUS Enclosure TEFC Ambient 40 Mounting C-Face Footless NEMA Design A Orientation HORIZONTAL Starting Type ACROSS THE LINE Assembly F1 ONLY KVA Code L Drive End Bearing BALL IP Code 43 Opposite End Bearing BALL Drive End Bearing Size 6206 Opposite End Bearing Size 6205 Weight N/A lbs CE Y CSA Y UL Recognized Construction Thermal Protection NOT
